General Details

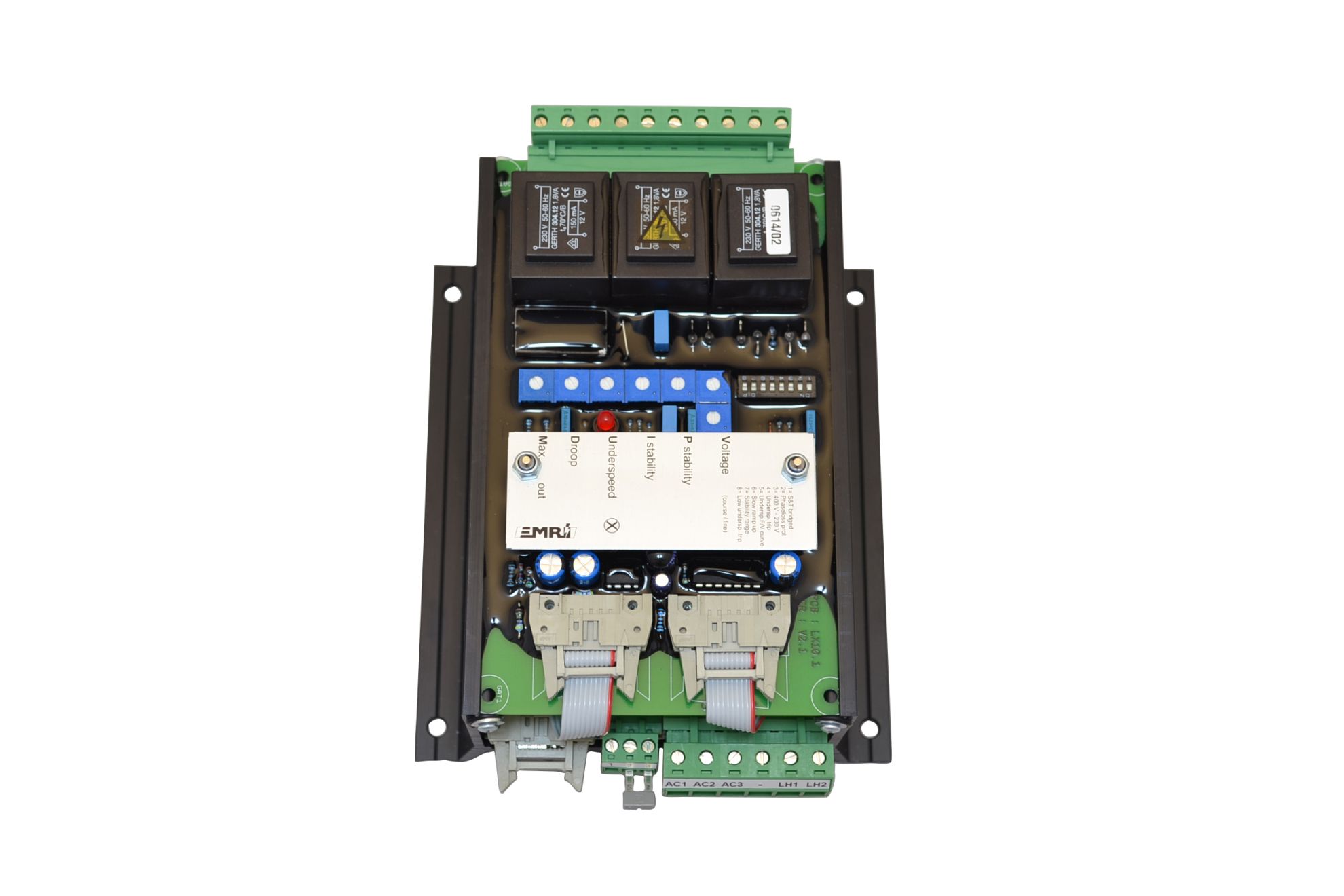

The EMRI SUBLX20 is designed for use in generators with a compounding system. The voltage regulator operates according to the subtractive principle, which means that all surplus of that excitation current generated by the generator compounding is disposed in a shunt resistor. In conjunction with the optional EMRI droopkit the SUBLX20 can be used for parallel operation with other generators using quadrature voltage droop.
Technical Details
  • Dimensions: 177 x 142 x 105
  • Weight: 1700g
  • AC/DC: AC
  • Voltage range
    • 115V/135V
    • 230V/275V
    • 400V/480V
  • Supply voltage: 120-480V
  • Output voltage: N/A
  • Output current: 8
  • Phases: 3
